Ruby on Rails(楽天API) → TravisCI → heroku アプリ制作

enPiT のビジネスアプリケーション演習のまとめを書きます٩( º ◡ º )و イエイ
環境構築からherokuへのデプロイまでの流れです。

仮想環境

                        • -

VirtualBox:4.2.18
Vagrant:1.2.7
Ubuntu:12.04.3 LTS

                        • -

開発環境

                        • -

Rubyruby 2.0.0p247
Raisl:Rails 4.0.0

                        • -


まずは仮想環境から作ります!
今回はVirtualBoxを使い、Vargrantで簡単に環境構築を行いました。

Virtual Box
https://www.virtualbox.org/wiki/Downloads

Vargrant
http://downloads.vagrantup.com/

インストールが完了したら、早速vargrantを使い環境構築をします。
今回はboxファイルが用意されていたため、それを貰うことに。

$ vagrant box add enpit ~/Desktop/enpit_package.box
Downloading or copying the box...
Extracting box...te: 41.7M/s, Estimated time remaining: 0:00:01)
The box you're attempting to add already exists:

Name: enpit
Provider: virtualbox

約3分程度で完了。ローカルで入れてるから早いね。

$ vagrant init enpit
A `Vagrantfile` has been placed in this directory. You are now
ready to `vagrant up` your first virtual environment! Please read
the comments in the Vagrantfile as well as documentation on
`vagrantup.com` for more information on using Vagrant.

$ vagrant up
Bringing machine 'default' up with 'virtualbox' provider...
[default] Importing base box 'enpit'...
[default] Matching MAC address for NAT networking...
[default] Setting the name of the VM...
[default] Clearing any previously set forwarded ports...
[default] Fixed port collision for 22 => 2222. Now on port 2200.
[default] Creating shared folders metadata...
[default] Clearing any previously set network interfaces...
[default] Preparing network interfaces based on configuration...
[default] Forwarding ports...
[default] -- 22 => 2200 (adapter 1)
[default] Booting VM...
[default] Waiting for VM to boot. This can take a few minutes.
[default] VM booted and ready for use!
[default] Mounting shared folders...
[default] -- /vagrant

これで仮想OSの起動はOKです!!
sshで入ります。

$ vagrant ssh
Welcome to Ubuntu 12.04.3 LTS (GNU/Linux 3.2.0-23-generic-pae i686)

 * Documentation:  https://help.ubuntu.com/

Welcome to your Vagrant-built virtual machine.
Last login: Sun Sep  1 04:01:07 2013 from 10.0.2.2

vagrantを使うことにすでに環境構築されているOS使うことができるのです。
早速環境を見てみましょう。

$ lsb_release -a
No LSB modules are available.
Distributor ID:	Ubuntu
Description:	Ubuntu 12.04.3 LTS
Release:	12.04
Codename:	precise

$ rbenv -v
rbenv 0.4.0

$ ruby -v
ruby 2.0.0p247 (2013-06-27 revision 41674) [i686-linux]

$ rails -v
Rails 4.0.0

素晴らしい!!!
vargrantのいいところはこれだけではありません。
なんと、/vagrant ではホストOS側と繋がっているのです (´・∀・`) ヘー
/vagrant に保存したファイルはホスト側(Mac)から開くことができる!
今回は /vagrant/… で作業を行います。

$ mkdir /vagrant/enpit
$ cd /vagrant/enpit/

今回はRuby on Railsを使うため、3000番ポートにアクセスを行います。
ホストOS側からlocalhost:3000にアクセスして、ゲストOS側の3000番ポートにアクセスができるようにしましょう。

$ emacs /vagrant/Vagrantfile
----コメントを外し、3000に変更する-------
 # Create a forwarded port mapping which allows access to a specific port
 # within the machine from a port on the host machine. In the example below,
 # accessing "localhost:8080" will access port 80 on the guest machine.
 config.vm.network :forwarded_port, guest: 3000, host: 3000

$ logout

$ vagrant reload
…
[default] -- 3000 => 3000 (adapter 1)
…

$ vagrant ssh

デフォルトでは日本語が使えないようです。
なので、日本語の設定もしちゃいます。

$ sudo locale-gen ja_JP.UTF-8
Generating locales...
  ja_JP.UTF-8... done
Generation complete.

$ sudo update-locale LANG=ja_JP.UTF-8

$ sudo update-locale LC_ALL=ja_JP.UTF-8


では、早速Railsアプリを作ってみましょう。
今回は動くことを確認するためにscaffoldで作ります。

$ rails new enpit_app
      create
      create  README.rdoc
      create  Rakefile
      create  config.ru
      create  .gitignore
      create  Gemfile
      create  app
      create  app/assets/javascripts/application.js
      create  app/assets/stylesheets/application.css
      create  app/controllers/application_controller.rb
      create  app/helpers/application_helper.rb
      create  app/views/layouts/application.html.erb
      create  app/assets/images/.keep
      create  app/mailers/.keep
      create  app/models/.keep
      create  app/controllers/concerns/.keep
      create  app/models/concerns/.keep
      create  bin
      create  bin/bundle
      create  bin/rails
      create  bin/rake
      create  config
      create  config/routes.rb
      create  config/application.rb
      create  config/environment.rb
      create  config/environments
      create  config/environments/development.rb
      create  config/environments/production.rb
      create  config/environments/test.rb
      create  config/initializers
      create  config/initializers/backtrace_silencers.rb
      create  config/initializers/filter_parameter_logging.rb
      create  config/initializers/inflections.rb
      create  config/initializers/mime_types.rb
      create  config/initializers/secret_token.rb
      create  config/initializers/session_store.rb
      create  config/initializers/wrap_parameters.rb
      create  config/locales
      create  config/locales/en.yml
      create  config/boot.rb
      create  config/database.yml
      create  db
      create  db/seeds.rb
      create  lib
      create  lib/tasks
      create  lib/tasks/.keep
      create  lib/assets
      create  lib/assets/.keep
      create  log
      create  log/.keep
      create  public
      create  public/404.html
      create  public/422.html
      create  public/500.html
      create  public/favicon.ico
      create  public/robots.txt
      create  test/fixtures
      create  test/fixtures/.keep
      create  test/controllers
      create  test/controllers/.keep
      create  test/mailers
      create  test/mailers/.keep
      create  test/models
      create  test/models/.keep
      create  test/helpers
      create  test/helpers/.keep
      create  test/integration
      create  test/integration/.keep
      create  test/test_helper.rb
      create  tmp/cache
      create  tmp/cache/assets
      create  vendor/assets/javascripts
      create  vendor/assets/javascripts/.keep
      create  vendor/assets/stylesheets
      create  vendor/assets/stylesheets/.keep
         run  bundle install
Fetching gem metadata from https://rubygems.org/..........
Fetching gem metadata from https://rubygems.org/..
Resolving dependencies...
Installing rake (10.1.0)
Using i18n (0.6.5)
Installing minitest (4.7.5)
Using multi_json (1.7.9)
Using atomic (1.1.13)
Using thread_safe (0.1.2)
Using tzinfo (0.3.37)
Using activesupport (4.0.0)
Using builder (3.1.4)
Using erubis (2.7.0)
Using rack (1.5.2)
Using rack-test (0.6.2)
Using actionpack (4.0.0)
Using mime-types (1.25)
Using polyglot (0.3.3)
Using treetop (1.4.15)
Using mail (2.5.4)
Using actionmailer (4.0.0)
Using activemodel (4.0.0)
Using activerecord-deprecated_finders (1.0.3)
Using arel (4.0.0)
Using activerecord (4.0.0)
Using bundler (1.3.5)
Installing coffee-script-source (1.6.3)
Installing execjs (2.0.1)
Installing coffee-script (2.2.0)
Using thor (0.18.1)
Using railties (4.0.0)
Installing coffee-rails (4.0.0)
Using hike (1.2.3)
Installing jbuilder (1.5.1)
Installing jquery-rails (3.0.4)
Installing json (1.8.0)
Using tilt (1.4.1)
Using sprockets (2.10.0)
Using sprockets-rails (2.0.0)
Using rails (4.0.0)
Installing rdoc (3.12.2)
Installing sass (3.2.10)
Installing sass-rails (4.0.0)
Installing sdoc (0.3.20)
Installing sqlite3 (1.3.8)
Installing turbolinks (1.3.0)
Installing uglifier (2.2.1)
Your bundle is complete!
Use `bundle show [gemname]` to see where a bundled gem is installed.
Post-install message from rdoc:
Depending on your version of ruby, you may need to install ruby rdoc/ri data:

<= 1.8.6 : unsupported
 = 1.8.7 : gem install rdoc-data; rdoc-data --install
 = 1.9.1 : gem install rdoc-data; rdoc-data --install
>= 1.9.2 : nothing to do! Yay!

$ cd enpit_app

$ emacs Gemfile
----追加-----
group :development do
  gem 'sqlite3'
end

group :production do
  gem 'pg'
  gem 'rails_12factor'
end
-------------

$ bundle install --without production
Fetching gem metadata from https://rubygems.org/..........
Fetching gem metadata from https://rubygems.org/..
Resolving dependencies...
Using rake (10.1.0)
Using i18n (0.6.5)
Using minitest (4.7.5)
Using multi_json (1.7.9)
Using atomic (1.1.13)
Using thread_safe (0.1.2)
Using tzinfo (0.3.37)
Using activesupport (4.0.0)
Using builder (3.1.4)
Using erubis (2.7.0)
Using rack (1.5.2)
Using rack-test (0.6.2)
Using actionpack (4.0.0)
Using mime-types (1.25)
Using polyglot (0.3.3)
Using treetop (1.4.15)
Using mail (2.5.4)
Using actionmailer (4.0.0)
Using activemodel (4.0.0)
Using activerecord-deprecated_finders (1.0.3)
Using arel (4.0.0)
Using activerecord (4.0.0)
Using bundler (1.3.5)
Using coffee-script-source (1.6.3)
Using execjs (2.0.1)
Using coffee-script (2.2.0)
Using thor (0.18.1)
Using railties (4.0.0)
Using coffee-rails (4.0.0)
Using hike (1.2.3)
Using jbuilder (1.5.1)
Using jquery-rails (3.0.4)
Using json (1.8.0)
Using tilt (1.4.1)
Using sprockets (2.10.0)
Using sprockets-rails (2.0.0)
Using rails (4.0.0)
Using rdoc (3.12.2)
Using sass (3.2.10)
Using sass-rails (4.0.0)
Using sdoc (0.3.20)
Using sqlite3 (1.3.8)
Using turbolinks (1.3.0)
Using uglifier (2.2.1)
Your bundle is complete!
Gems in the group production were not installed.
Use `bundle show [gemname]` to see where a bundled gem is installed.

$ rails g scaffold Blog acount_id:integer acount_name:string
 acount_name:string
      invoke  active_record
      create    db/migrate/20130907060754_create_blogs.rb
      create    app/models/blog.rb
      invoke    test_unit
      create      test/models/blog_test.rb
      create      test/fixtures/blogs.yml
      invoke  resource_route
       route    resources :blogs
      invoke  scaffold_controller
      create    app/controllers/blogs_controller.rb
      invoke    erb
      create      app/views/blogs
      create      app/views/blogs/index.html.erb
      create      app/views/blogs/edit.html.erb
      create      app/views/blogs/show.html.erb
      create      app/views/blogs/new.html.erb
      create      app/views/blogs/_form.html.erb
      invoke    test_unit
      create      test/controllers/blogs_controller_test.rb
      invoke    helper
      create      app/helpers/blogs_helper.rb
      invoke      test_unit
      create        test/helpers/blogs_helper_test.rb
      invoke    jbuilder
      create      app/views/blogs/index.json.jbuilder
      create      app/views/blogs/show.json.jbuilder
      invoke  assets
      invoke    coffee
      create      app/assets/javascripts/blogs.js.coffee
      invoke    scss
      create      app/assets/stylesheets/blogs.css.scss
      invoke  scss
      create    app/assets/stylesheets/scaffolds.css.scss

$ bundle exec rake db:migrate
==  CreateBlogs: migrating ====================================================
-- create_table(:blogs)
   -> 0.0113s
==  CreateBlogs: migrated (0.0136s) ===========================================

$ rails s
=> Booting WEBrick
=> Rails 4.0.0 application starting in development on http://0.0.0.0:3000
=> Run `rails server -h` for more startup options
=> Ctrl-C to shutdown server
…

アクセスの確認
http://localhost:3000/

Blogの確認
http://localhost:3000/blogs

これでRuby on Railsの動作確認はOKですね。
では、楽天APIを使ったアプリケーションを作り…たいですが、今回はもらってきましょうw
もらってくるためにGitHubを使います。

kawaharaさんのGitHubから rakuten-ws-rails-sample をもらってきましょう。
自分のプロジェクトをして扱うので、forkします!

kawahara/rakuten-ws-rails-sample
https://github.com/kawahara/rakuten-ws-rails-sample

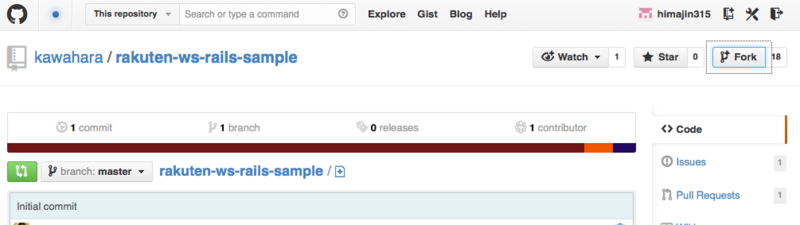

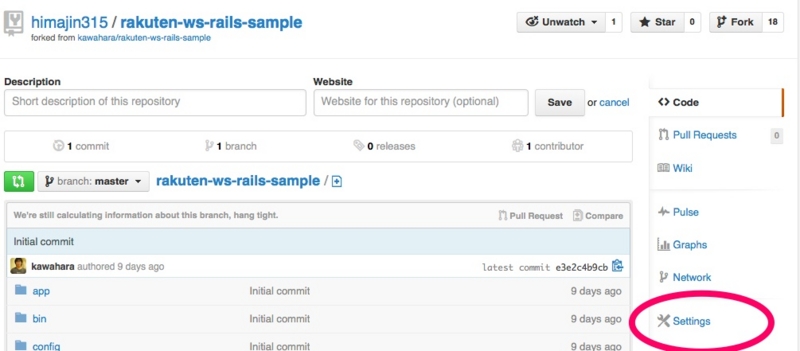

右上の「fork」をクリックする。

forkしたら、cloneを行いソースを持ってくきます。

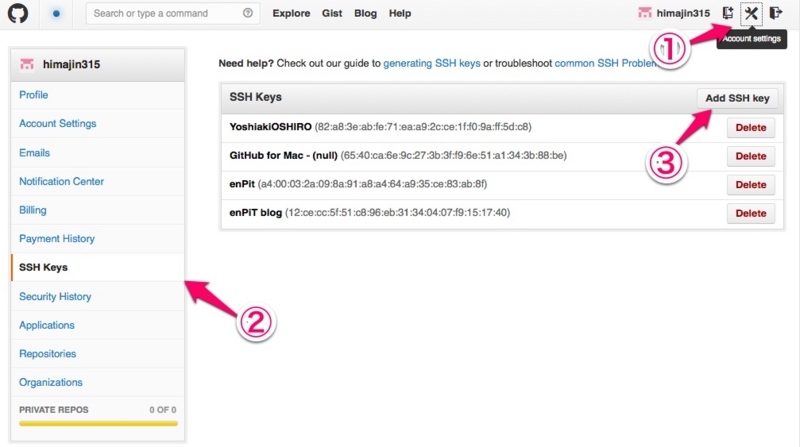

cloneを行う前にRSA鍵認証でソースを持ってくるためにRSA鍵の登録を行いましょう。

$ ssh-keygen
Generating public/private rsa key pair.
Enter file in which to save the key (/home/vagrant/.ssh/id_rsa):
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /home/vagrant/.ssh/id_rsa.
Your public key has been saved in /home/vagrant/.ssh/id_rsa.pub.
The key fingerprint is:
68:d6:ae:d3:47:81:78:0e:a0:60:17:4d:e5:ce:25:47 vagrant@precise
The key's randomart image is:
+--[ RSA 2048]----+
|   .+... E       |
|.. .... .        |
|.... . + +       |
|  .   =o* .      |
|      +*S  .     |
|     o .. .      |
|       ...       |
|      ... .      |
|      .. .       |
+-----------------+

$ cat ~/.ssh/id_rsa.pub
ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQC6ShUmuXr6tnwKkmbPZzXoG5tdX6o9MYQetgj9WVkYlR+RHeTF4CRXlqHmfr+yyniEzKS9C8rWvq+DM68dh0TzDMwdldwHiUFm5mDT1Zwhjw4QBMt6IoZSxHkLftFPmM5sm8j6rR7qtXSZ8sba+VrHIYWkpvat9IRFiQr8VR8KERyNkgkRSKll9dWn7LqXkFrKvMCD6rbn+rAmEeLN7+YQ8wqVmmv3F6HhT2h4Vky+RV8GSKuabSJ08VMpWsqlRUnsgaYuhd2IN3w8H4vW7tA9Nal4qLStYK4fHqRe+YVQPGO9rBFJlLNbhEW/mjeZLd15JA7HUx/v746y3NHGfTLH vagrant@precise

公開鍵を作成したら、公開鍵をGitHubに登録します。
「Account Setting」→「SSH Keys」→「Add HHS key」

鍵の登録が終わったら、cloneしてきましょう。
あとついでにGitの初期設定も行いましょう。

$ cd /vagrant/enpit/

$ git clone git@github.com:himajin315/rakuten-ws-rails-sample.git
Cloning into 'rakuten-ws-rails-sample'...
remote: Counting objects: 62, done.
remote: Compressing objects: 100% (49/49), done.
remote: Total 62 (delta 2), reused 53 (delta 2)
Receiving objects: 100% (62/62), 14.09 KiB, done.
Resolving deltas: 100% (2/2), done.

$ cd rakuten-ws-rails-sample/

$ git config --global user.name "himajin315"
$ git config --global user.email himajin315@gmail.com

動かす前にいろいろと変更します。
作業する時は一度Branchを切って作業をしましょう!!

$ git checkout -b 'edit_Gem_controller'

$ git branch
* edit_Gem_controller
  master

では、Gemfileとapp/controllers/itemsearch_controller.rbのソースコードを変更しましょう。

$ emacs Gemfile
-----------(追加:heroku)-----------
ruby '2.0.0'

group :production do
  gem 'rails_12factor'
end
-----------------------------------

$ bundle install --without production
Resolving dependencies...
Using rake (10.1.0)
Using i18n (0.6.5)
Using minitest (4.7.5)
Using multi_json (1.7.9)
Using atomic (1.1.13)
Using thread_safe (0.1.2)
Using tzinfo (0.3.37)
Using activesupport (4.0.0)
Using builder (3.1.4)
Using erubis (2.7.0)
Using rack (1.5.2)
Using rack-test (0.6.2)
Using actionpack (4.0.0)
Using mime-types (1.25)
Using polyglot (0.3.3)
Using treetop (1.4.15)
Using mail (2.5.4)
Using actionmailer (4.0.0)
Using activemodel (4.0.0)
Using activerecord-deprecated_finders (1.0.3)
Using arel (4.0.0)
Using activerecord (4.0.0)
Using bundler (1.3.5)
Using coffee-script-source (1.6.3)
Using execjs (2.0.1)
Using coffee-script (2.2.0)
Using thor (0.18.1)
Using railties (4.0.0)
Using coffee-rails (4.0.0)
Using hike (1.2.3)
Using httpclient (2.3.4.1)
Using jbuilder (1.5.1)
Using jquery-rails (3.0.4)
Using json (1.8.0)
Using tilt (1.4.1)
Using sprockets (2.10.0)
Using sprockets-rails (2.0.0)
Using rails (4.0.0)
Using rdoc (3.12.2)
Using sass (3.2.10)
Using sass-rails (4.0.0)
Using sdoc (0.3.20)
Using turbolinks (1.3.0)
Using uglifier (2.2.1)
Your bundle is complete!
Gems in the group production were not installed.
Use `bundle show [gemname]` to see where a bundled gem is installed.

今回はデータベースを使っていないため、rake db:migrate は行わなくても大丈夫です。
次に先ほど取得したapplication_secretとaffiliateIdを書き換えます。

$ emacs app/controllers/itemsearch_controller.rb
-----------------------
   begin
      data = httpClient.get_content('https://app.rakuten.co.jp/services/api/Ichi\
baItem/Search/20130805', {
          'applicationId' => '1009720612747315343',
          'affiliateId'   => '11b23e39.373d568a.11b23e3a.912e032a',
          'keyword'       => keyword
      })
-----------------------

動作確認します。

$ rails s
=> Booting WEBrick
=> Rails 4.0.0 application starting in development on http://0.0.0.0:3000
=> Run `rails server -h` for more startup options
=> Ctrl-C to shutdown server
[2013-09-11 05:19:12] INFO  WEBrick 1.3.1
[2013-09-11 05:19:12] INFO  ruby 2.0.0 (2013-06-27) [i686-linux]
[2013-09-11 05:19:12] INFO  WEBrick::HTTPServer#start: pid=15402 port=3000
…

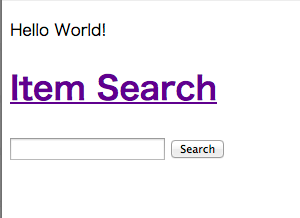

サーバ起動したので、サイトにアクセスしてみましょう。
http://localhost:3000/

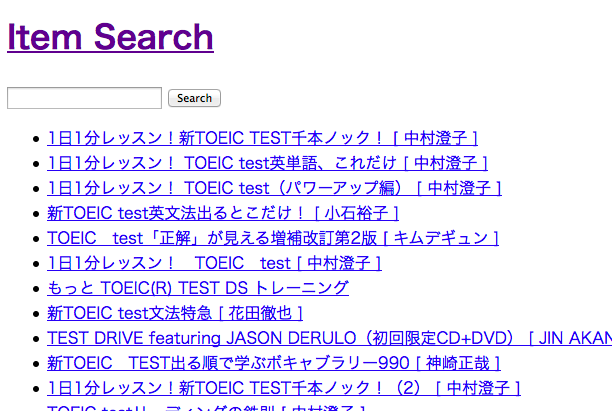

「test」と入力し、検索結果が出るか確認しましょう。

動作確認ができたら、GitHubにpushをしましょう。

$ git stage -p (git add . でもOK)
diff --git a/Gemfile b/Gemfile
index cb26a93..5781409 100644
--- a/Gemfile
+++ b/Gemfile
@@ -1,8 +1,12 @@
 source 'https://rubygems.org'
+ruby '2.0.0'

 # Bundle edge Rails instead: gem 'rails', github: 'rails/rails'
 gem 'rails', '4.0.0'

+group :production do
+  gem 'rails_12factor'
+end

 # Use SCSS for stylesheets
 gem 'sass-rails', '~> 4.0.0'
Stage this hunk [y,n,q,a,d,/,s,e,?]? y

diff --git a/Gemfile.lock b/Gemfile.lock
index 37c5a19..65d4729 100644
--- a/Gemfile.lock
+++ b/Gemfile.lock
@@ -65,6 +65,11 @@ GEM
       bundler (>= 1.3.0, < 2.0)
       railties (= 4.0.0)
       sprockets-rails (~> 2.0.0)
+    rails_12factor (0.0.2)
+      rails_serve_static_assets
+      rails_stdout_logging
+    rails_serve_static_assets (0.0.1)
+    rails_stdout_logging (0.0.2)
     railties (4.0.0)
       actionpack (= 4.0.0)
       activesupport (= 4.0.0)
Stage this hunk [y,n,q,a,d,/,j,J,g,e,?]? y
@@ -113,6 +118,7 @@ DEPENDENCIES
   jbuilder (~> 1.2)
   jquery-rails
   rails (= 4.0.0)
+  rails_12factor
   sass-rails (~> 4.0.0)
   sdoc
   turbolinks
Stage this hunk [y,n,q,a,d,/,K,g,e,?]? y

diff --git a/app/controllers/itemsearch_controller.rb b/app/controllers/itemsearch_controller.rb
index 12d4a4f..22cea19 100644
--- a/app/controllers/itemsearch_controller.rb
+++ b/app/controllers/itemsearch_controller.rb
@@ -12,8 +12,8 @@ class ItemsearchController < ApplicationController

     begin
       data = httpClient.get_content('https://app.rakuten.co.jp/services/api/IchibaItem/Search/20130805', {
-          'applicationId' => '1025899060325418115',
-          'affiliateId'   => '0dd78f8a.26c4c8c0.0dd78f8b.0ee811d2',
+          'applicationId' => '1051519437665746699',
+          'affiliateId'   => '11b23e39.373d568a.11b23e3a.912e032a',
           'keyword'       => keyword
       })
       @jsonData = JSON.parse data
Stage this hunk [y,n,q,a,d,/,e,?]? y

$ git status
# On branch edit_Gem_controller
# Changes to be committed:
#   (use "git reset HEAD <file>..." to unstage)
#
#	modified:   Gemfile
#	modified:   Gemfile.lock
#	modified:   app/controllers/itemsearch_controller.rb
#

$ git commit -m "edit_Gem_contlloer"
# On branch edit_Gem_controller
nothing to commit (working directory clean)

$ git checkout master
M	Gemfile
M	Gemfile.lock
M	app/controllers/itemsearch_controller.rb
Switched to branch 'master'

$ git merge edit_Gem_controller
Updating e3e2c4b..f7062ce
Fast-forward
 Gemfile                                  |    4 ++++
 Gemfile.lock                             |    6 ++++++
 app/controllers/itemsearch_controller.rb |    4 ++--
 3 files changed, 12 insertions(+), 2 deletions(-)

$ git push
Counting objects: 13, done.
Compressing objects: 100% (7/7), done.
Writing objects: 100% (7/7), 755 bytes, done.
Total 7 (delta 6), reused 0 (delta 0)
To git@github.com:himajin315/rakuten-ws-rails-sample.git
   e3e2c4b..f7062ce  master -> master

次にherokuにデプロイする作業に入ります。

$ heroku login
Enter your Heroku credentials.
Email: yoshi315@live.jp
Password (typing will be hidden):
Authentication successful.

$ heroku keys:add
Found existing public key: /home/vagrant/.ssh/id_rsa.pub
Uploading SSH public key /home/vagrant/.ssh/id_rsa.pub... done

$ heroku create
Creating whispering-plains-2548... done, stack is cedar
http://whispering-plains-2548.herokuapp.com/ | git@heroku.com:whispering-plains-2548.git
Git remote heroku added

$ git push heroku master
The authenticity of host 'heroku.com (50.19.85.132)' can't be established.
RSA key fingerprint is 8b:48:5e:67:0e:c9:16:47:32:f2:87:0c:1f:c8:60:ad.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added 'heroku.com,50.19.85.132' (RSA) to the list of known hosts.
Counting objects: 69, done.
Compressing objects: 100% (56/56), done.
Writing objects: 100% (69/69), 14.63 KiB, done.
Total 69 (delta 8), reused 56 (delta 2)

-----> Ruby/Rails app detected
-----> Using Ruby version: ruby-2.0.0
-----> Installing dependencies using Bundler version 1.3.2
       Running: bundle install --without development:test --path vendor/bundle --binstubs vendor/bundle/bin --deployment
       Fetching gem metadata from https://rubygems.org/..........
       Fetching gem metadata from https://rubygems.org/..
       Installing rake (10.1.0)
       Installing i18n (0.6.5)
       Installing minitest (4.7.5)
       Installing multi_json (1.7.9)
       Installing atomic (1.1.13)
       Installing thread_safe (0.1.2)
       Installing tzinfo (0.3.37)
       Installing activesupport (4.0.0)
       Installing builder (3.1.4)
       Installing erubis (2.7.0)
       Installing rack (1.5.2)
       Installing rack-test (0.6.2)
       Installing actionpack (4.0.0)
       Installing mime-types (1.25)
       Installing polyglot (0.3.3)
       Installing treetop (1.4.15)
       Installing mail (2.5.4)
       Installing actionmailer (4.0.0)
       Installing activemodel (4.0.0)
       Installing activerecord-deprecated_finders (1.0.3)
       Installing arel (4.0.0)
       Installing activerecord (4.0.0)
       Installing coffee-script-source (1.6.3)
       Installing execjs (2.0.1)
       Installing coffee-script (2.2.0)
       Installing thor (0.18.1)
       Installing railties (4.0.0)
       Installing coffee-rails (4.0.0)
       Installing hike (1.2.3)
       Installing httpclient (2.3.4.1)
       Installing jbuilder (1.5.1)
       Installing jquery-rails (3.0.4)
       Installing json (1.8.0)
       Using bundler (1.3.2)
       Installing tilt (1.4.1)
       Installing sprockets (2.10.0)
       Installing sprockets-rails (2.0.0)
       Installing rails (4.0.0)
       Installing rails_serve_static_assets (0.0.1)
       Installing rails_stdout_logging (0.0.2)
       Installing rails_12factor (0.0.2)
       Installing rdoc (3.12.2)
       Installing sass (3.2.10)
       Installing sass-rails (4.0.0)
       Installing sdoc (0.3.20)
       Installing turbolinks (1.3.0)
       Installing uglifier (2.2.1)
       Your bundle is complete! It was installed into ./vendor/bundle
       Post-install message from rdoc:
       Depending on your version of ruby, you may need to install ruby rdoc/ri data:
       <= 1.8.6 : unsupported
       = 1.8.7 : gem install rdoc-data; rdoc-data --install
       = 1.9.1 : gem install rdoc-data; rdoc-data --install
       >= 1.9.2 : nothing to do! Yay!
       Cleaning up the bundler cache.
-----> Writing config/database.yml to read from DATABASE_URL
-----> Preparing app for Rails asset pipeline
       Running: rake assets:precompile
       I, [2013-09-11T05:43:52.546333 #1097]  INFO -- : Writing /tmp/build_94bzp3cfvo1n/public/assets/application-268d763ee3d9fa5a009263184a8d78b2.js
       I, [2013-09-11T05:43:52.569063 #1097]  INFO -- : Writing /tmp/build_94bzp3cfvo1n/public/assets/application-58c7c0e35a67f189e19b8c485930e614.css
       Asset precompilation completed (8.06s)
       Cleaning assets
-----> Discovering process types
       Procfile declares types      -> (none)
       Default types for Ruby/Rails -> console, rake, web, worker

-----> Compiled slug size: 34.0MB
-----> Launching... done, v5
       http://whispering-plains-2548.herokuapp.com deployed to Heroku

To git@heroku.com:whispering-plains-2548.git
 * [new branch]      master -> master

herokuの動作確認しましょう。
http://whispering-plains-2548.herokuapp.com

OK.

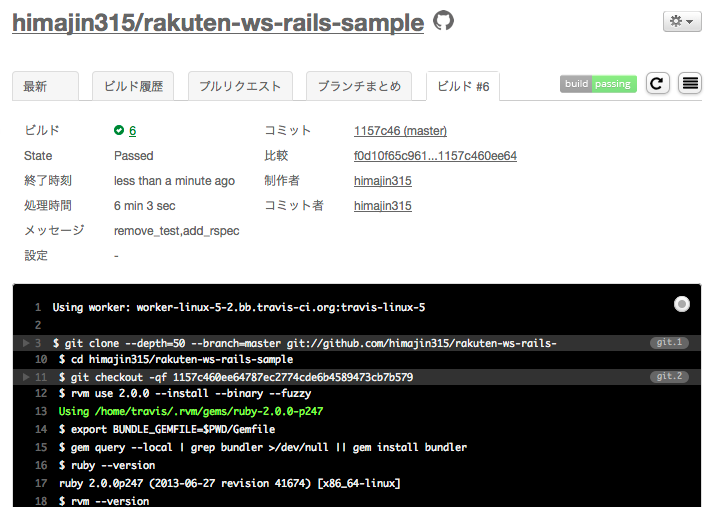

herokuへのデプロイが完了したので、今度はTravisCIとの連携に行きましょう。
https://travis-ci.org/

TravisCIを使うために設定ファイルを作成します。

$ git checkout -b travis

$ emacs .travis.yml
----------追加------------
language: ruby
rvm:
  - 2.0.0
--------------------------

$ bundle install

$ git stage -p
diff --git a/Gemfile b/Gemfile
index 5781409..93ba3bc 100644
--- a/Gemfile
+++ b/Gemfile
@@ -8,6 +8,10 @@ group :production do
   gem 'rails_12factor'
 end

+group :test do
+  gem 'rake'
+end
+
 # Use SCSS for stylesheets
 gem 'sass-rails', '~> 4.0.0'

Stage this hunk [y,n,q,a,d,/,e,?]? y

diff --git a/Gemfile.lock b/Gemfile.lock
index 65d4729..2f6760f 100644
--- a/Gemfile.lock
+++ b/Gemfile.lock
@@ -119,6 +119,7 @@ DEPENDENCIES
   jquery-rails
   rails (= 4.0.0)
   rails_12factor
+  rake
   sass-rails (~> 4.0.0)
   sdoc
   turbolinks
Stage this hunk [y,n,q,a,d,/,e,?]? y

$ git stage .travis.yml

$ git status
# On branch travis
# Changes to be committed:
#   (use "git reset HEAD <file>..." to unstage)
#
#	new file:   .travis.yml
#	modified:   Gemfile
#	modified:   Gemfile.lock
#

$ git commit -m 'tavisci_add_yum_rake'
[travis f0d10f6] tavisci_add_yum_rake
 3 files changed, 8 insertions(+)
 create mode 100644 .travis.yml

$ git checkout masterSwitched to branch 'master'

$ git merge travis
Updating f7062ce..f0d10f6
Fast-forward
 .travis.yml  |    3 +++
 Gemfile      |    4 ++++
 Gemfile.lock |    1 +
 3 files changed, 8 insertions(+)
 create mode 100644 .travis.yml

今度はGitHubとTravisCI側の設定をします。
まず、GitHubのレポジトリに行きます。

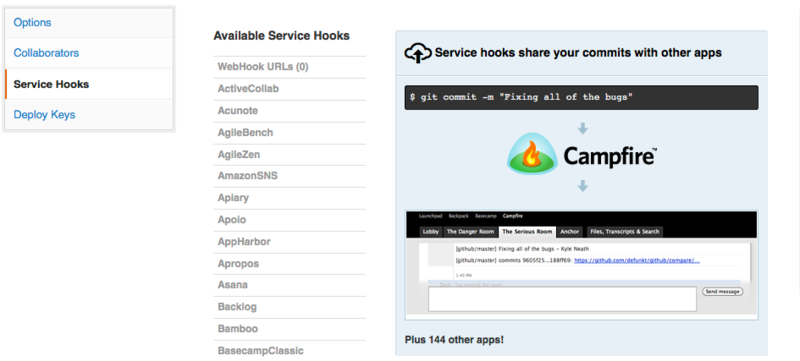

「Setteing」→「Service Hooks」→「Travis

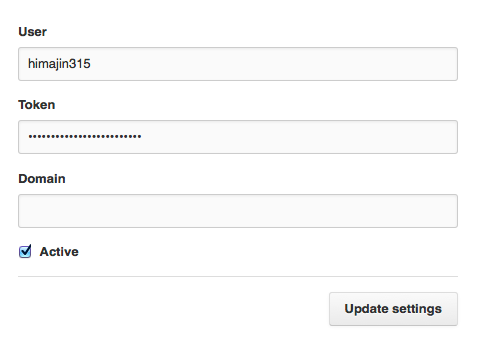

TravisCIのユーザ名とトークンを書きます。
トークンはTravisCIのアカウントから見ることができます。

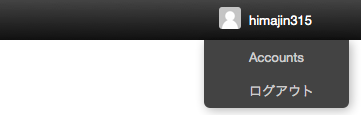

右上の「Accounts」→「Profile」

トークンをコピーしましょう。
コピーしたトークンはGitHubのTokenに入力しましょう。
Activeにチェックを付けたら、「Update settings」をクリックをします。

次にTravis側のRepositoriesの「rakuten-ws-rails-sample」をONにします。

GutHubとTravisの設定は完了です。
GitHubにpushをし、動作確認を行いましょう。
(pushをするたびにTravisが動く)

$ git push
Counting objects: 8, done.
Compressing objects: 100% (4/4), done.
Writing objects: 100% (5/5), 481 bytes, done.
Total 5 (delta 3), reused 0 (delta 0)
To git@github.com:himajin315/rakuten-ws-rails-sample.git
   f7062ce..f0d10f6  master -> master

少し待つとTravicがテストを始めます。

動作確認OK.
次にTravisとherokuとの連携です。
travisというコマンドがあるそうなので、gemでインストールしましょう。

$ git checkout travis

$ gem install travis -v 1.5.3 --no-rdoc --no-ri
Fetching: multipart-post-1.2.0.gem (100%)
Successfully installed multipart-post-1.2.0
Fetching: faraday-0.8.8.gem (100%)
Successfully installed faraday-0.8.8
Fetching: faraday_middleware-0.9.0.gem (100%)
Successfully installed faraday_middleware-0.9.0
Fetching: highline-1.6.19.gem (100%)
Successfully installed highline-1.6.19
Fetching: netrc-0.7.7.gem (100%)
Successfully installed netrc-0.7.7
Fetching: backports-3.3.3.gem (100%)
Successfully installed backports-3.3.3
Fetching: addressable-2.3.5.gem (100%)
Successfully installed addressable-2.3.5
Fetching: net-http-persistent-2.9.gem (100%)
Successfully installed net-http-persistent-2.9
Fetching: net-http-pipeline-1.0.1.gem (100%)
Successfully installed net-http-pipeline-1.0.1
Fetching: gh-0.13.0.gem (100%)
Successfully installed gh-0.13.0
Fetching: launchy-2.3.0.gem (100%)
Successfully installed launchy-2.3.0
Fetching: coderay-1.0.9.gem (100%)
Successfully installed coderay-1.0.9
Fetching: slop-3.4.6.gem (100%)
Successfully installed slop-3.4.6
Fetching: method_source-0.8.2.gem (100%)
Successfully installed method_source-0.8.2
Fetching: pry-0.9.12.2.gem (100%)
Successfully installed pry-0.9.12.2
Fetching: ffi-1.9.0.gem (100%)
Building native extensions.  This could take a while...
Successfully installed ffi-1.9.0
Fetching: ethon-0.6.1.gem (100%)
Successfully installed ethon-0.6.1
Fetching: typhoeus-0.6.5.gem (100%)
Successfully installed typhoeus-0.6.5
Fetching: websocket-1.0.7.gem (100%)
Successfully installed websocket-1.0.7
Fetching: ruby-hmac-0.4.0.gem (100%)
Successfully installed ruby-hmac-0.4.0
Fetching: pusher-client-0.3.1.gem (100%)
Successfully installed pusher-client-0.3.1
Fetching: travis-1.5.3.gem (100%)
Building native extensions.  This could take a while...
Successfully installed travis-1.5.3
22 gems installed

$ rbenv rehash

$ travis version
1.5.3

$ travis setup heroku
Outdated CLI version, run `gem install travis` or use --skip-version-check.

$ gem install travis
Fetching: terminal-notifier-1.5.1.gem (100%)
Successfully installed terminal-notifier-1.5.1
Fetching: travis-1.5.4.gem (100%)
Building native extensions.  This could take a while...
Successfully installed travis-1.5.4
Parsing documentation for terminal-notifier-1.5.1
Installing ri documentation for terminal-notifier-1.5.1
Parsing documentation for travis-1.5.4
Installing ri documentation for travis-1.5.4
2 gems installed

$ rbenv rehash

$ travis setup heroku
Deploy only from himajin315/rakuten-ws-rails-sample? |yes| yes
Encrypt API key? |yes| yes

.travis.ymlに追加されていることを確認

$ cat .travis.yml
language: ruby
rvm:
- 2.0.0
deploy:
…
$ git stage .

$ git commit -m "tarvis_yml_add_deploy"
[travis 864dc50] tarvis_yml_add_deploy
 1 file changed, 8 insertions(+), 1 deletion(-)

$ git checkout master

$ git merge travis
Updating f0d10f6..864dc50
Fast-forward
 .travis.yml |    9 ++++++++-
 1 file changed, 8 insertions(+), 1 deletion(-)

一応これでもできるけど、ついでにtestも書いちゃいましょう!
テストについては「RSpec/Capybara -- はじめの一歩」を参照しました。
http://www.oiax.jp/rails/rspec_capybara_primer/rspec_capybara_the_first_step.html

$ emacs Gemfile
---------追加(rspec-rails)------
group :test do
  gem 'rake'
  gem 'rspec-rails'
  gem "capybara"
end
--------------------------------

$ bundle install

$ rm -rf test
(既存のtestを削除)

$ emacs config/application.rb
#require "rails/test_unit/railtie"    コメントアウト

$ emacs spec/spec_helper.rb
#config.fixture_path = "#{::Rails.root}/spec/fixtures"  コメントアウト
#config.use_transactional_fixtures = true  コメントアウト

$ rails g rspec:install
      create  .rspec
      create  spec
      create  spec/spec_helper.rb

$ rspec
No examples found.


Finished in 0.00019 seconds
0 examples, 0 failures

失敗するテストコードを書きます!

$ mkdir spec/features

$ emacs spec/features/top_page_spec.rb
-------------------------------
require 'spec_helper'

describe 'トップページ' do
  specify '挨拶文を表示' do
    visit root_path
    expect(page).to have_css('p', text: 'Hello World!')
  end
end
-------------------------------

$ rspec
F

Failures:

  1) トップページ 挨拶文を表示
     Failure/Error: expect(page).to have_css('p', text: 'Hello World!')
     Capybara::ExpectationNotMet:
       expected to find css "p" with text "Hello World!" but there were no matches
     # ./spec/features/top_page_spec.rb:7:in `block (2 levels) in <top (required)>'

Finished in 0.54378 seconds
1 example, 1 failure

Failed examples:

rspec ./spec/features/top_page_spec.rb:5 # トップページ 挨拶文を表示

Randomized with seed 11915

失敗しました。

Hello World!

がないとテスト失敗となります。
テストが成功するように書き換えましょう。

$ emacs app/views/itemsearch/index.html.erb
---------追加(1行目)--------
<p>Hello World!</p>
-----------------------------
$ rspec.

Finished in 0.5469 seconds
1 example, 0 failures

Randomized with seed 16208

成功です!!
では、GitHubにpushをし、TravisCIでテストが通り、herokuにデプロイできるかどうか確認しましょう。

$ git add .

$ git status
# On branch travis
# Changes to be committed:
#   (use "git reset HEAD <file>..." to unstage)
#
#	new file:   .rspec
#	modified:   Gemfile
#	modified:   Gemfile.lock
#	modified:   app/views/itemsearch/index.html.erb
#	modified:   config/application.rb
#	new file:   spec/features/top_page_spec.rb
#	new file:   spec/spec_helper.rb
#	new file:   spec/spec_helper.rb~
#	deleted:    test/controllers/.keep
#	deleted:    test/fixtures/.keep
#	deleted:    test/helpers/.keep
#	deleted:    test/integration/.keep
#	deleted:    test/mailers/.keep
#	deleted:    test/models/.keep
#	deleted:    test/test_helper.rb
#

$ git commit -m "remove_test,add_rspec"
[travis 1157c46] remove_test,add_rspec
 9 files changed, 124 insertions(+), 10 deletions(-)
 create mode 100644 .rspec
 create mode 100644 spec/features/top_page_spec.rb
 create mode 100644 spec/spec_helper.rb
 create mode 100644 spec/spec_helper.rb~
 delete mode 100644 test/controllers/.keep
 delete mode 100644 test/fixtures/.keep
 delete mode 100644 test/helpers/.keep
 delete mode 100644 test/integration/.keep
 delete mode 100644 test/mailers/.keep
 delete mode 100644 test/models/.keep
 delete mode 100644 test/test_helper.rb

$ git checkout master

$ git merge travis
Updating 864dc50..1157c46
Fast-forward
 .rspec                              |    1 +
 Gemfile                             |    2 ++
 Gemfile.lock                        |   25 +++++++++++++++++++++
 app/views/itemsearch/index.html.erb |    4 ++--
 config/application.rb               |    2 +-
 spec/features/top_page_spec.rb      |    9 ++++++++
 spec/spec_helper.rb                 |   42 +++++++++++++++++++++++++++++++++++
 spec/spec_helper.rb~                |   42 +++++++++++++++++++++++++++++++++++
 test/test_helper.rb                 |    7 ------
 9 files changed, 124 insertions(+), 10 deletions(-)
 create mode 100644 .rspec
 create mode 100644 spec/features/top_page_spec.rb
 create mode 100644 spec/spec_helper.rb
 create mode 100644 spec/spec_helper.rb~
 delete mode 100644 test/controllers/.keep
 delete mode 100644 test/fixtures/.keep
 delete mode 100644 test/helpers/.keep
 delete mode 100644 test/integration/.keep
 delete mode 100644 test/mailers/.keep
 delete mode 100644 test/models/.keep
 delete mode 100644 test/test_helper.rb

$ git push
Counting objects: 29, done.
Compressing objects: 100% (16/16), done.
Writing objects: 100% (19/19), 2.85 KiB, done.
Total 19 (delta 9), reused 0 (delta 0)
To git@github.com:himajin315/rakuten-ws-rails-sample.git
   f0d10f6..1157c46  master -> master

TravisCIのテストは5分ぐらい待ちます。

テストが通ったら、herokuの方を見てみましょう!
http://whispering-plains-2548.herokuapp.com/

反映されてる ヽ(*´∀`)/
お疲れ様でした!!!!!!
